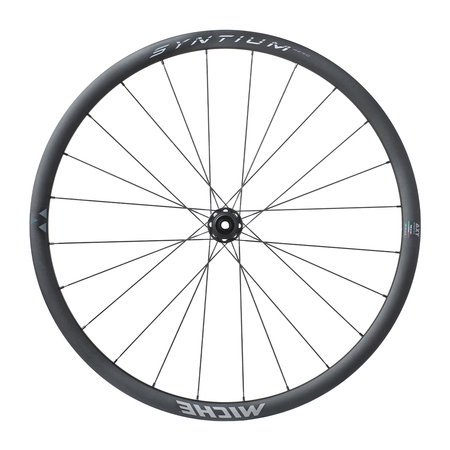

Syntium, an iconic name in the Miche range that is synonymous with high-performance aluminium wheel. Lightness and reliability meet aerodynamics. The new Syntium DX WR becomes Aero thanks to the asymmetric rim with a height that increases from 25 to 29 mm and a design that is optimised based on the experience gathered from the studies used for the top-end models. The WR series hubs feature a CNC-machined hub body and rotor in Ergal 7075 T6 and are mounted with double-thickness aero spokes. New rim 19C section with asymmetric profile 29mm, Tubeless Ready, with sandblast surface treatment and 16+8 spokes pattern that guarantees the best stiffness and reactivity of the wheel. Available as optional a tubeless kit assembled and guaranteed by QC Miche.

Hub body made of AL 7075 T6, CNC-lightened, with innovative design and 16+8 pattern for a better torsional rigidity and responsiveness of the wheel. Adjustment of the front and rear hub smoothness through a special ring nut. To fix the brake disc rotor use only lockring for thru axle with 27 mm hole.



• Code
  WHSYD5
• ASTM
  1
• Hubs
  AL 7075 T6
• Spokes
  Stainless steel black / aero / straight pull / double butted
• Nipples
  AL 7075 T6 / Black
• Weight (g)
  1746 (Tubeless Ready Kit + 20)
• Assembly
  16+8 - 16+8 / Radial / Crossing
• O.L.D. (mm)
  100 - 142
• Bearings
  MICHE® 2RS
• Transmission
  RES 30 Rapid Engagement System
• Compatibility
  Campagnolo®UD, Shimano® HG,SRAM® XDR
• Max load, Bike + User (Kg)
  109 Kg
• Rim profile (mm)
  F 29 - R 29
• Braking system
  Disc Center Lock
• Included accessories
  Instruction manual / Flap (only for Clincher version)
• Rim material
  Alloy - Asymmetrical AXY
• Freewheel body
  AL 7075 T6 - Steel
• Rim dimension
  622x19
• Tyre dimensions
  23mm ÷ 34mm
• Tyre type
  Tubeless
• Front axle (mm)
  12
• Rear axle (mm)
  12
